Labomed Inc.

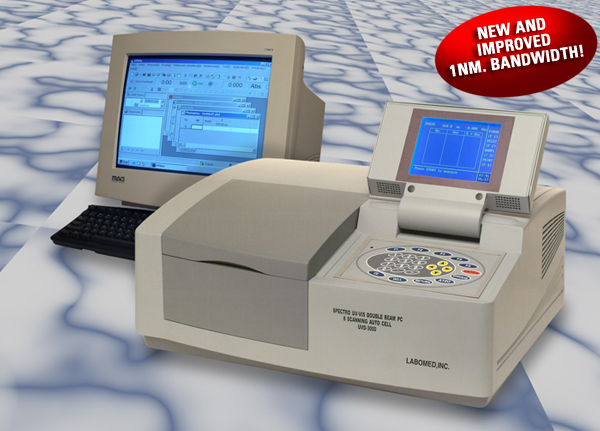

Spectro UV-VIS Double Beam PC
Scanning Spectrophotometer
Model UVD-2950

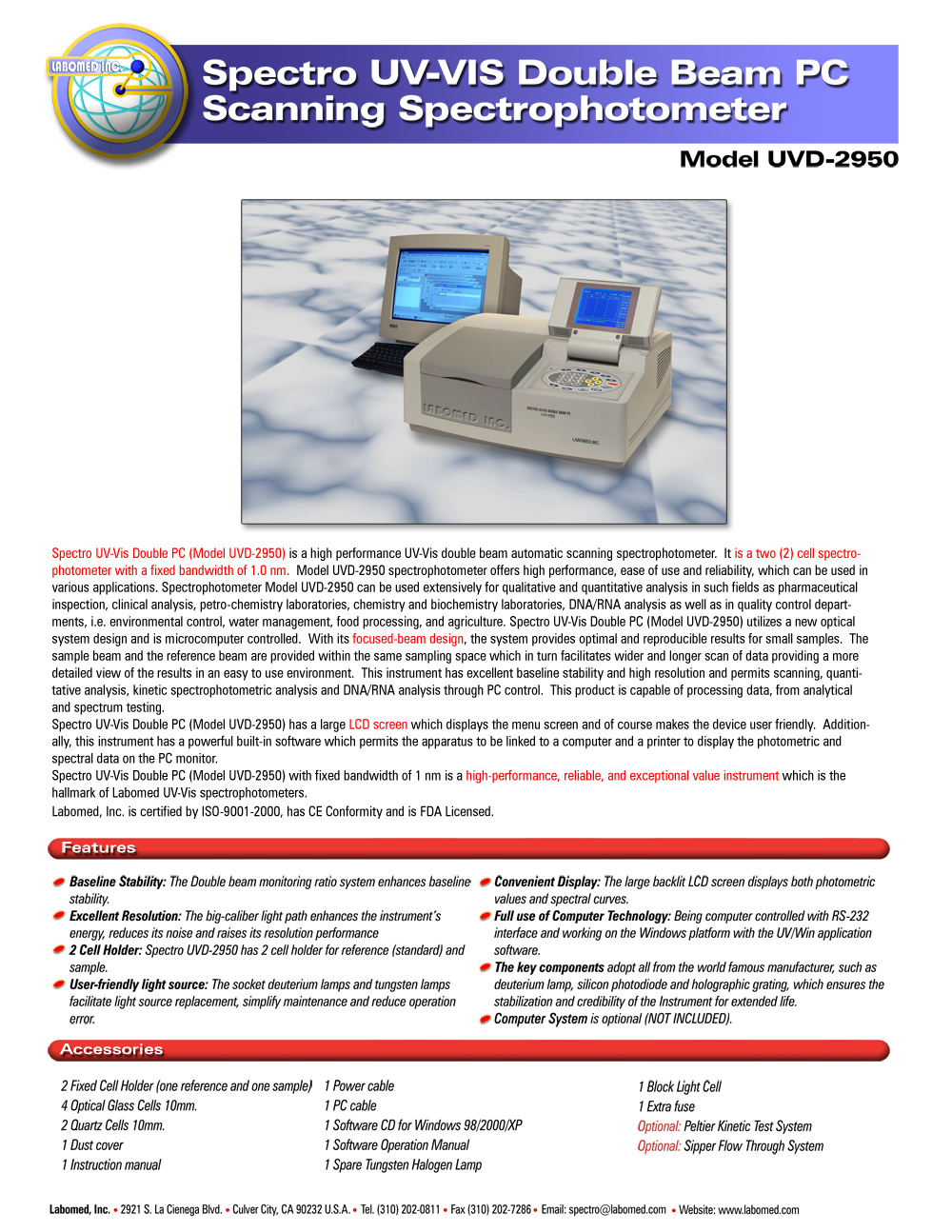

Spectro UV-Vis Double PC (Model UVD-2950) is a high performance UV-Vis double beam automatic scanning spectrophotometer.  It is a two (2) cell spectrophotometer, now with a new and improved bandwidth of 1nm! .  Model UVD-2950 spectrophotometer offers high performance, ease of use and reliability, which can be used in various applications. Spectrophotometer Model UVD-2950 can be used extensively for qualitative and quantitative analysis in such fields as pharmaceutical inspection, clinical analysis, petro-chemistry laboratories, chemistry and biochemistry laboratories, DNA/RNA analysis as well as in quality control departments, i.e. environmental control, water management, food processing, and agriculture.

Spectro UV-Vis Double PC (Model UVD-2950) utilizes a new optical system design and is microcomputer controlled.  With its focused-beam design, the system provides optimal and reproducible results for small samples.  The sample beam and the reference beam are provided within the same sampling
space
, facilitating a wider and longer scan of data, providing a more detailed view of the results in an easy to use environment. This instrument has excellent baseline stability and high resolution and permits scanning, quantitative analysis, kinetic spectrophotometric analysis and DNA/RNA analysis through PC control. This product is capable of processing data, from analytical and spectrum testing.

Spectro UV-Vis Double PC (Model UVD-2950) has a large LCD screen which displays the menu screen and of course makes the device user friendly.  Additionally, this instrument permits the apparatus to be linked to a computer and a printer to display the photometric and spectral data on the PC monitor.
This connection is controlled by the RS232 AND USB interface, compatible with Windows XP, & and 8, using the new UVWin 6.0 UV-VIS application software.

Labomed, Inc. is certified byISO 9001-2013, has CE Conformity and is FDA Licensed. Spectro UV-Vis Double PC (Model UVD-2950) with fixed bandwidth of 1 nm is a high-performance, reliable, and exceptional value instrument which is the hallmark of Labomed UV-Vis spectrophotometers.

This Spectro can be used by itself or linked to a PC and comes with a USB interface to connect to the computer.

The operation manual is available in 18 available different languages.


 Labomed, Inc. is certified by
ISO 9001-2013, has CE Conformity and is FDA Licensed.



Features

Top of the Page

  • Baseline Stability: The Double beam monitoring ratio system enhances baseline stability.

  • 1nm fixed bandwidth New! : The Double beam monitoring ratio system enhances baseline stability.

  • Excellent Resolution: The big-caliber light path enhances the instrument’s energy, reduces its noise and raises its resolution performance.

  • 2 Cell Holder: Spectro UVD-2950 has 2 cell holders for reference (standard) and sample.

  • User-friendly light source: The light source performs an automatic interchange, selectable within the working range of the light source. The socket deuterium lamps and tungsten lamps facilitate light source replacement, simplify maintenance and reduce operation error.

  • Convenient Display: The large backlit LCD screen displays both photometric values and spectral curves.

  • Full use of Computer Technology: Being computer controlled with RS-232 interface and working on the Windows platform with the UV/Win application software.

  • The key components are all adopted from the world famous manufacturer, such as deuterium lamp, silicon photodiode and holographic grating, which ensures the stabilization and credibility of the Instrument for extended life.

  • Computer System is optional (NOT INCLUDED).

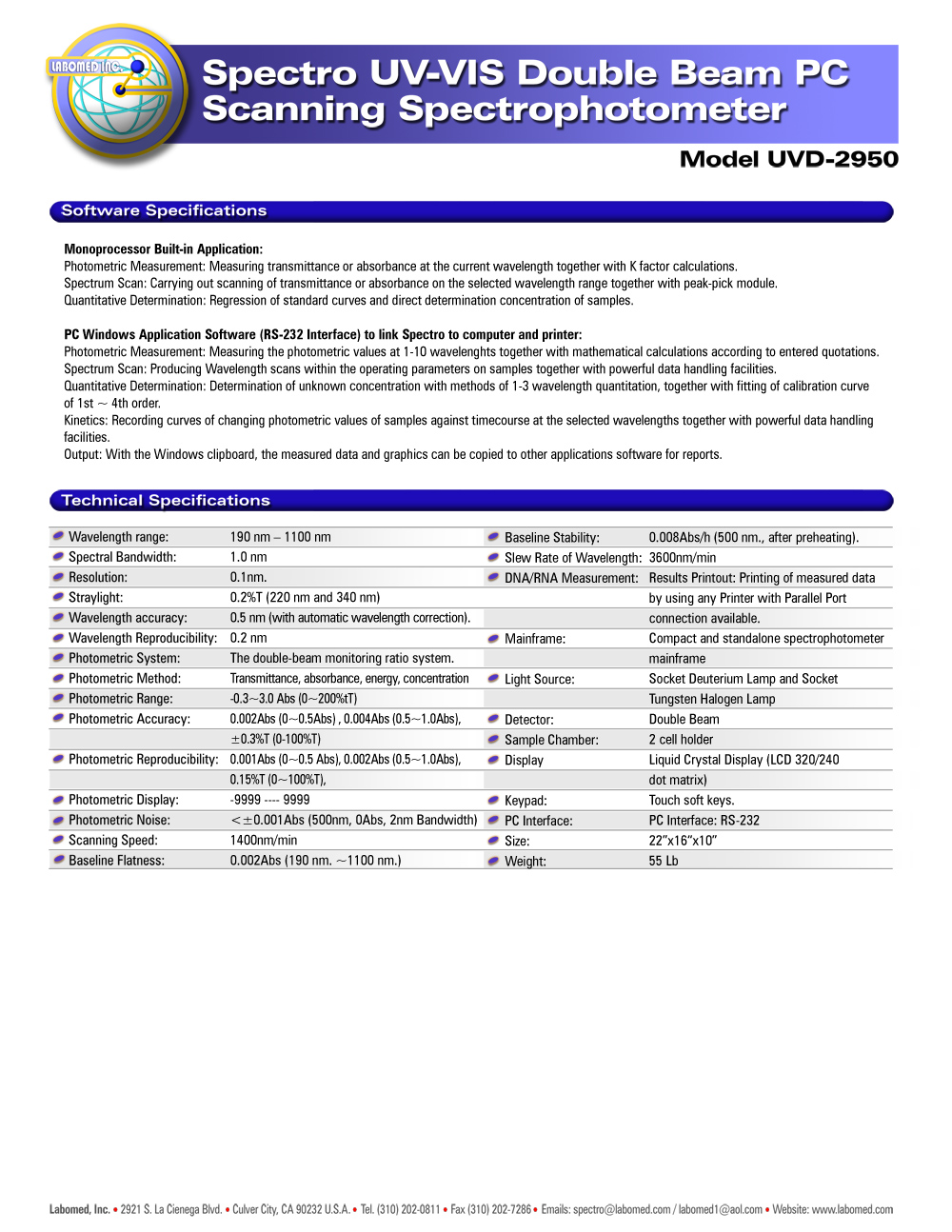

Software Specifications

OUR NEW SOFTWARE UV-WIN 6.0
WITH 3D SPECTRA


Now all Labomed, Inc. split and double beam spectrophotometers with our newly developed software called UV-Win 6.0 can be used with Windows XP, Windows 7 and Windows 8. It is capable of testing more applications with its RS-232 and USB connections, and supports the data export of measured results to the PC and then, if required, a USB flash drive, when additional data storage is required. One of the new features is that it provides 3-D graphing of the spectral results.

Monoprocessor Built-in Application:

  • Photometric Measurement: Measuring transmittance or absorbance at the current wavelength together with K factor calculations.

  • Spectrum Scan: Carrying out scanning of transmittance or absorbance on the selected wavelength range together with peak-pick module.
  • Quantitative Determination: Regression of standard curves and direct determination concentration of samples.
PC Windows Application Software (RS-232 Interface) to link Spectro to computer and printer:
  • Photometric Measurement: Measuring the photometric values at 1-10 wavelengths together with mathematical calculations according to entered quotations.
  • Spectrum Scan: Producing Wavelength scans within the operating parameters on samples together with powerful data handling facilities.
  • Quantitative Determination: Determination of unknown concentration with methods of 1-3 wavelength quantitation, together with fitting of calibration curve of 1st ~ 4th order.
  • Kinetics: Recording curves of changing photometric values of samples against timecourse at the selected wavelengths together with powerful data handling facilities.
  • Output: With the Windows clipboard, the measured data and graphics can be copied to other applications software for reports.



Included Accessories

Top of the Page
  • 2 Auto Cell Holder

  • 8 Optical Glass Cells 10mm.

  • 2 Quartz Cells 10mm.

  • 1 Dust cover

  • 1 Instruction manual available in 18 different languages

  • 1 Power cable

  • 1 PC cable

  • 1 Software CD for Windows 98/2000/XP/7

  • 1 Software Operation Manual in 18 different languages

  • 1 Block Light Cell

  • 1 Extra fuse

  • DVD of installation and how to use the Spectro

  • Optional: Peltier Kinetic Test System

  • Optional: Sipper Flow Through System

Optional Accessories

  • Set of 2 performance testing filters (1 "E filter" for photometric accuracy test and 1 didymium filter for wavelength accuracy test)

  • Peltier constant temperature system (15 - 55 ºC Specify: Spectro UV-Vis Double)

  • Sipper flow through system (peristaltic pump and flowcell (Specify: Spectro UV-Vis Double)

  • Multi-purpose cell holder 20-30-40-50 Path Length

Top of the Page

Technical Specifications

Top of the Page
|

1) Wavelength Range: 190 nm – 1100 nm
- Spectral Bandwidth: 1.0 nm. New and Improved!
- Resolution: 1nm.
- Wavelength Display 0.1nm resolution
- Stray Light: >2.10Abs (200nm)
- Wavelength Accuracy: +0.3nm (with automatic wavelength correction)
- Wavelength Reproducibility: +0.2 nm
2) Photometric System: Double beam optical system
- Photometric Method: Transmittance, absorbance, energy and concentration
- Photometric Range: -0.3~3.0 Abs
- Photometric Accuracy: ±0.002Abs (0~0.5A)
±0.004Abs (0.5~1.0A)
±0.3%T (0~100%T)
- Photometric Reproducibility: ±0.001Abs (0~0.5A)
±0.002Abs (0.5~1.0A)
±0.15%T (0~100%T)
- Photometric Display: -9999 ---- 9999
- Photometric Noise: ±0.001Abs (at 500nm, 2nm Spectral Bandwidth 0 Abs)
- Scanning Speed: 1400nm/min
- Baseline Flatness:
±0.002 Abs
- Baseline Stability: 0.0008Abs/h (2 hours warming up, 2nm Bandwidth, 500nm)
- Slew Rate of Wavelength: 3600nm/min
3) DNA/RNA Measurement:
- Results Printout:
Printing of measured data by using any Printer with Parallel Port connection available.
4) Mainframe: Compact and standalone spectrophotometer mainframe
- Light Source: Socket Deuterium Lamp and Socket Tungsten Halogen Lamp.
- Detector: Double Beam
- Sample Chamber: 2 cell holder
- Display Liquid Crystal Display (LCD 320 iÀ240 dot matrix)
- Keypad: Touch soft keys.
- PC Interface: PC Interface: RS-232
- Size: 22"x16"x10”
- Weight: 55 Lb
